καταφερνω να φτιαξω το δευτερο δαχτυλιδι απλα δε ξερω αν οντως δειχνει το καθε πυρηνα ξεχωριστα. αυτο π εκανα ηταν να προσθεσω το
- Κώδικας: Επιλογή όλων
{
name='cpu',
arg='core 1',
max=100,
bg_colour=0xffffff,
bg_alpha=0.2,
fg_colour=0xFF3300,
fg_alpha=0.8,
x=80, y=360,
radius=25,
thickness=25,
start_angle=-90,
end_angle=180
},
- Κώδικας: Επιλογή όλων
--[[
Clock Rings by Linux Mint (2011) reEdited by despot77
This script draws percentage meters as rings, and also draws clock hands if you want! It is fully customisable; all options are described in the script. This script is based off a combination of my clock.lua script and my rings.lua script.
IMPORTANT: if you are using the 'cpu' function, it will cause a segmentation fault if it tries to draw a ring straight away. The if statement on line 145 uses a delay to make sure that this doesn't happen. It calculates the length of the delay by the number of updates since Conky started. Generally, a value of 5s is long enough, so if you update Conky every 1s, use update_num>5 in that if statement (the default). If you only update Conky every 2s, you should change it to update_num>3; conversely if you update Conky every 0.5s, you should use update_num>10. ALSO, if you change your Conky, is it best to use "killall conky; conky" to update it, otherwise the update_num will not be reset and you will get an error.
To call this script in Conky, use the following (assuming that you save this script to ~/scripts/rings.lua):
lua_load ~/scripts/clock_rings.lua
lua_draw_hook_pre clock_rings
Changelog:
+ v1.0 -- Original release (30.09.2009)
v1.1p -- Jpope edit londonali1010 (05.10.2009)
*v Mint-lua -- reEdit despot77 (18.02.2011)
]]
settings_table = {
{
name='cpu',
arg='core 0',
max=100,
bg_colour=0xffffff,
bg_alpha=0.2,
fg_colour=0xFF3300,
fg_alpha=0.8,
x=163, y=360,
radius=25,
thickness=25,
start_angle=-90,
end_angle=180
},
{
name='cpu',
arg='core 1',
max=100,
bg_colour=0xffffff,
bg_alpha=0.2,
fg_colour=0xFF3300,
fg_alpha=0.8,
x=80, y=360,
radius=25,
thickness=25,
start_angle=-90,
end_angle=180
},
{
name='memperc',
arg='',
max=100,
bg_colour=0xffffff,
bg_alpha=0.2,
fg_colour=0xFF3300,
fg_alpha=0.8,
x=163, y=280,
radius=25,
thickness=25,
start_angle=-90,
end_angle=180
},
{
name='swapperc',
arg='',
max=100,
bg_colour=0xffffff,
bg_alpha=0.2,
fg_colour=0xFF3300,
fg_alpha=0.8,
x=163, y=440,
radius=25,
thickness=25,
start_angle=-90,
end_angle=180
},
{
name='fs_used_perc',
arg='/',
max=100,
bg_colour=0xffffff,
bg_alpha=0.2,
fg_colour=0xFF3300,
fg_alpha=0.8,
x=163, y=520,
radius=25,
thickness=25,
start_angle=-90,
end_angle=180
},
{
name='downspeedf',
arg='wlan0',
max=210,
bg_colour=0xffffff,
bg_alpha=0.2,
fg_colour=0xFF3300,
fg_alpha=0.8,
x=165, y=600,
radius=30,
thickness=12,
start_angle=-90,
end_angle=180
},
{
name='upspeedf',
arg='wlan0',
max=100,
bg_colour=0xffffff,
bg_alpha=0.2,
fg_colour=0xff3300,
fg_alpha=0.8,
x=165, y=600,
radius=16,
thickness=12,
start_angle=-90,
end_angle=180
},
}
-- Use these settings to define the origin and extent of your clock.
clock_r=65
-- "clock_x" and "clock_y" are the coordinates of the centre of the clock, in pixels, from the top left of the Conky window.
clock_x=100
clock_y=150
show_seconds=true
require 'cairo'
function rgb_to_r_g_b(colour,alpha)
return ((colour / 0x10000) % 0x100) / 255., ((colour / 0x100) % 0x100) / 255., (colour % 0x100) / 255., alpha
end
function draw_ring(cr,t,pt)
local w,h=conky_window.width,conky_window.height
local xc,yc,ring_r,ring_w,sa,ea=pt['x'],pt['y'],pt['radius'],pt['thickness'],pt['start_angle'],pt['end_angle']
local bgc, bga, fgc, fga=pt['bg_colour'], pt['bg_alpha'], pt['fg_colour'], pt['fg_alpha']
local angle_0=sa*(2*math.pi/360)-math.pi/2
local angle_f=ea*(2*math.pi/360)-math.pi/2
local t_arc=t*(angle_f-angle_0)
-- Draw background ring
cairo_arc(cr,xc,yc,ring_r,angle_0,angle_f)
cairo_set_source_rgba(cr,rgb_to_r_g_b(bgc,bga))
cairo_set_line_width(cr,ring_w)
cairo_stroke(cr)
-- Draw indicator ring
cairo_arc(cr,xc,yc,ring_r,angle_0,angle_0+t_arc)
cairo_set_source_rgba(cr,rgb_to_r_g_b(fgc,fga))
cairo_stroke(cr)
end
function draw_clock_hands(cr,xc,yc)
local secs,mins,hours,secs_arc,mins_arc,hours_arc
local xh,yh,xm,ym,xs,ys
secs=os.date("%S")
mins=os.date("%M")
hours=os.date("%I")
secs_arc=(2*math.pi/60)*secs
mins_arc=(2*math.pi/60)*mins+secs_arc/60
hours_arc=(2*math.pi/12)*hours+mins_arc/12
end
function conky_clock_rings()
local function setup_rings(cr,pt)
local str=''
local value=0
str=string.format('${%s %s}',pt['name'],pt['arg'])
str=conky_parse(str)
value=tonumber(str)
pct=value/pt['max']
-- Maximum should only be 1.000 (100%)
if (pct > 1) then
pct = 1
end
draw_ring(cr,pct,pt)
end
-- Check that Conky has been running for at least 5s
if conky_window==nil then return end
local cs=cairo_xlib_surface_create(conky_window.display,conky_window.drawable,conky_window.visual, conky_window.width,conky_window.height)
local cr=cairo_create(cs)
local updates=conky_parse('${updates}')
update_num=tonumber(updates)
if update_num>5 then
for i in pairs(settings_table) do
setup_rings(cr,settings_table[i])
end
end
draw_clock_hands(cr,clock_x,clock_y)
end
και το
- Κώδικας: Επιλογή όλων
${color black}${goto 125}${voffset 55}CPU
${color FFFFFF}${goto 125}${cpu core 1}%
επισης βρηκα ενα script για να εμφανιζει τις ενημερωσεις του fb στο conky
- Κώδικας: Επιλογή όλων
#!/bin/bash
numberoflines=10
address="xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"
wget --user-agent="Mozilla/5.0 (X11; U; Linux i686; en-US) AppleWebKit/533.4 (KHTML, like Gecko) Chrome/5.0.375.55 Safari/533.4" -q $address -O /tmp/fbrss
cat /tmp/fbrss | awk '{
gsub(/.*<description>|<\/description>.*/,"")
print }' | grep "<title>" | cut -d"<" -f2 | cut -d">" -f2 | awk '{
gsub(/'s/, "");
gsub(/"/, "\"");
gsub(/commented on/, ">");
gsub(/also/, "");
gsub(/your friend request/, "friendship");
gsub(/posted something on/, "-->");
gsub(/posted on/, "-->");
print }' | awk '{
if ($0 in stored_lines)
x=1
else
print
stored_lines[$0]=1
}'| tail -n +2 | head -n $numberoflines
rm -f /tmp/fbrss*
το conky
- Κώδικας: Επιλογή όλων
# Conky settings #
background no
update_interval 1
cpu_avg_samples 2
net_avg_samples 2
override_utf8_locale yes
double_buffer yes
no_buffers yes
text_buffer_size 2048
#imlib_cache_size 0
temperature_unit fahrenheit
# Window specifications #
own_window yes
own_window_type normal
own_window_transparent yes
own_window_hints undecorate,sticky,skip_taskbar,skip_pager,below
border_inner_margin 0
border_outer_margin 0
minimum_size 200 250
maximum_width 200
alignment tr
gap_x 35
gap_y 55
# Graphics settings #
draw_shades no
draw_outline no
draw_borders no
draw_graph_borders no
# Text settings #
use_xft yes
override_utf8_locale yes
xftfont Neuropolitical:size=8
xftalpha 0.8
uppercase no
temperature_unit celsius
default_color FFFFFF
# Lua Load #
lua_load ~/.lua/scripts/clock_rings.lua
lua_draw_hook_pre clock_rings
TEXT
${font arial:size=42}${time %e}
${goto 100}${font arial:size=18}${color FF3300}${voffset -75}${time %b}
${font arial:size=10}${color FF3300}${voffset 15}${time %A}${color FF3300}${hr}
${goto 100}${font Neuropolitical:size=15}${color FFFFFF}${voffset -35}${time %Y}
${font Neuropolitical:size=30}${voffset 40}${alignc}${time %H}:${time %M}
${goto 175}${voffset -30}${font Neuropolitical:size=10}${time %S}
${font Neuropolitical:size=11}${color #FF0000} CPU
${font Neuropolitical:size=11}${alignr}${color yellow}temp: ${color FFFFFF}${hwmon temp 1}°C${font}
${hr}
${image ~/.conky/logo.png -p 165,10 -s 35x35}
${color FFFFFF}${font Neuropolitical:size=8}Uptime: ${uptime_short}
${color FFFFFF}${font Neuropolitical:size=8}Processes: ${processes}
${color FFFFFF}${font Neuropolitical:size=8}Running: ${running_processes}
${color FF3300}${goto 125}${voffset 27}RAM
${color FFFFFF}${goto 125}${memperc}%
${color FF3300}${goto 125}${voffset 55}CPU
${color FFFFFF}${goto 125}${cpu core 0}%
${color FF3300}${goto 125}${voffset 56}Swap
${color FFFFFF}${goto 125}${swapperc}%
${color FF3300}${goto 125}${voffset 57}Disk
${color FFFFFF}${goto 125}${fs_used_perc /}%
${color FF3300}${goto 130}${voffset 55}Net
${color FFFFFF}${goto 130}${downspeed wlan0}
${color FFFFFF}${goto 130}${upspeed wlan0}
${if_existing /proc/net/route wlan0}${font Ubuntu:size=8}${color4}Facebook Notifications: ${color}
$stippled_hr
${voffset -2}${font Ubuntu:size=7}${color1}${execi 60 ~/facebook}${color white}
${endif}

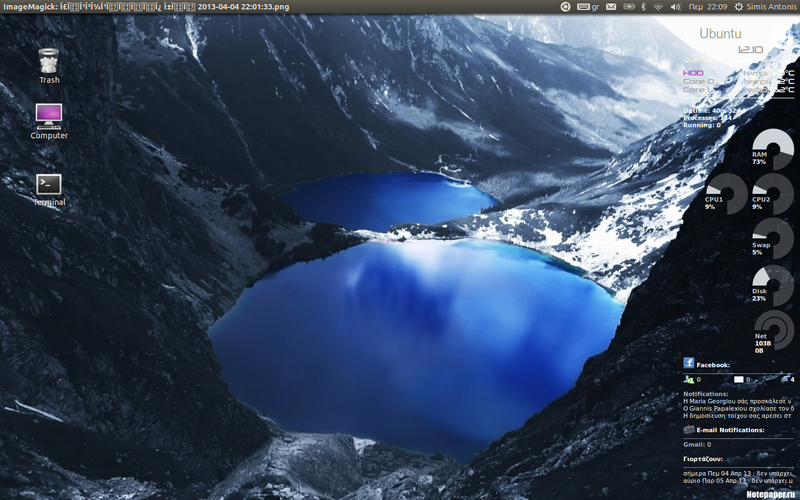

οι 4 τελευταιες γραμμες ειναι για να λειτουργει στο conky το fb. παρολα αυτα μου δειχνει μονο αυτο π φαινεται στην εικονα
απο εδω βρηκα το σκριπτ http://www.webupd8.org/2010/12/get-face ... conky.html
πως θα μπορεσω να βαλω CPU1 στο αριστερο και CPU2 στο δεξι δαχτυλιδι;
